XCIENT Fuel Cell Truck

XCIENT Fuel Cell Truck

World’s first commercialized fuel cell heavy duty truck

Download Catalog

Send Catalog via Email

Send Catalog via Email
All Electric Range
400
km
Max Stack Power
180
kW
Hydrogen Tank
31
kg H₂

All Electric Range based on internal testing with full load. Range can vary depending on external conditions.

These specifications are based on European models.

Highlights

Uncompromising Performance with Zero CO2


Hydrogen: Proven Superior

Field-Proven Outstanding Performance

In 2020, HMC exported its first consignment (47 units) of hydrogen-powered, zero-emission electrified commercial vehicles, XCIENT Fuel Cell to Switzerland. They are currently in use by logistics, distribution, and retail fleet operators.

Ultimate
Eco-Friendy
Ultimate Eco-Friendy

Zero Pollutants: Only H₂O

Pressured hydrogen reacts with oxygen to produce electricity and pure H2O without zero pollutants.

Extra Green Miles
Extra Green Miles

Over 400KM in Real-World Driving

XCIENT Fuel Cell is field-proven to deliver over 400 km on a single charge.

Higher Efficiency
Higher Efficiency

Perfect for All Types of Daily Operation

XCIENT Fuel Cell makes daily operations easier with its high charging efficiency. Refueling is fast and convenient.

Field Proven
Reliability
Field Proven Reliability

Safety Proven on Swiss Roads

As of September 2023, XCIENT Fuel Cell trucks in Switzerland have logged over 7 million km, without any major safety failure.

Technology

Deliver Solutions, with Your Evolution

Hyundai XCIENT Fuel Cell Truck running on a mountain road Hyundai XCIENT Fuel Cell Truck running on a mountain road
Internal System of Hyundai XCIENT Fuel Cell Truck
Internal System of Hyundai XCIENT Fuel Cell Truck
Internal System of Hyundai XCIENT Fuel Cell Truck
Internal System of Hyundai XCIENT Fuel Cell Truck
Internal System of Hyundai XCIENT Fuel Cell Truck
Internal System of Hyundai XCIENT Fuel Cell Truck
Internal System of Hyundai XCIENT Fuel Cell Truck
Internal System of Hyundai XCIENT Fuel Cell Truck
Internal System of Hyundai XCIENT Fuel Cell Truck
Internal System of Hyundai XCIENT Fuel Cell Truck
Internal System of Hyundai XCIENT Fuel Cell Truck
Internal System of Hyundai XCIENT Fuel Cell Truck
Internal System of Hyundai XCIENT Fuel Cell Truck
Internal System of Hyundai XCIENT Fuel Cell Truck
Internal System of Hyundai XCIENT Fuel Cell Truck
Internal System of Hyundai XCIENT Fuel Cell Truck

How XCIENT Hydrogen System Works

Hydrogen Tank
FC System
Battery
Motor

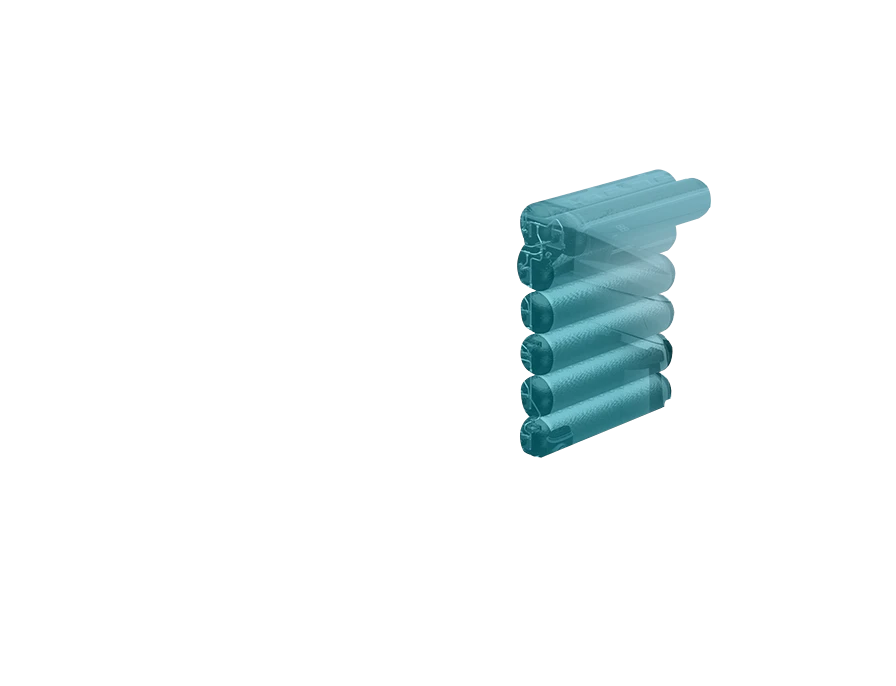

Hydrogen tank

Hydrogen tank is the first place where hydrogen reaches when charged. Hydrogen, which starts from here, is converted into electricity through a fuel cell system.

Fuel Cell System

Fuel Cell System that generates the electricity to drive, is also called a 'tertiary battery'. This runs with hydrogen tank, to convert thermal energy into electrical energy.

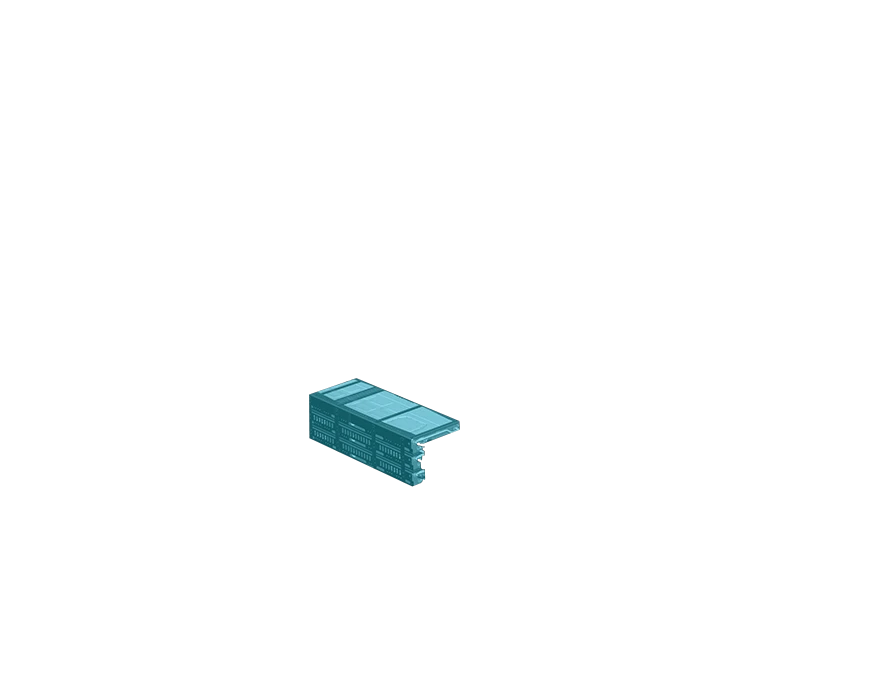

Battery

Hyundai's lithium-ion polymer batteries have a lower memory sensitivity and excellent charge efficiency compared to conventional batteries.

Motor

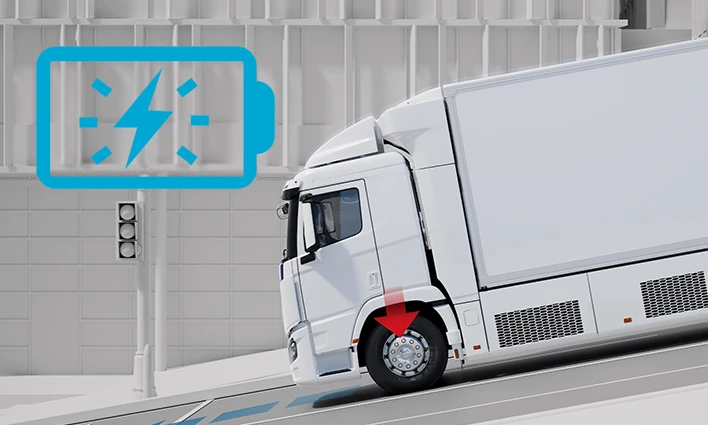

A motor then converts the electricity produced in the fuel cell stacks and stored in the high-voltage battery to kinetic energy. Just like in hybrid and battery electric cars, a regenerative braking system moves electricity back to the battery when the driver uses the brakes, improving fuel economy.

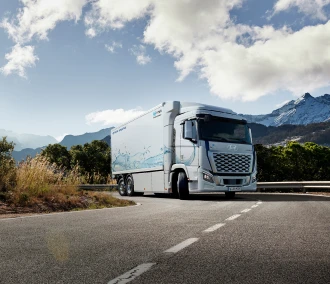

Greater mileage

Over 400km in real-world conditions

You can drive XCIENT Fuel Cell confidently knowing it averages over 400 km on a single charge.

Higher efficiency

Fast and simple charging

With a short refueling time, XCIENT Fuel Cell can travel a long distance, providing the efficiency and flexibility that drivers demand.

Big savings

Eco- and cost-friendly

XCIENT Fuel Cell does not require urea and engine oil, which means lower operating costs.

Stress-free driving

Quieter daily driving

XCIENT Fuel Cell generates minimal levels of noise and vibration for smoother operation and reduced stress and fatigue.

Rigid Trucks only

Front View of XCIENT Fuel Cell Truck
Front View of XCIENT Fuel Cell Truck
Front View of XCIENT Fuel Cell Truck
Front View of XCIENT Fuel Cell Truck
Front View of XCIENT Fuel Cell Truck

What’s Engineered in XCIENT

Front & Rear
Air Suspension
Rear Axle
Steering
Weight Distribution
Graphic Display

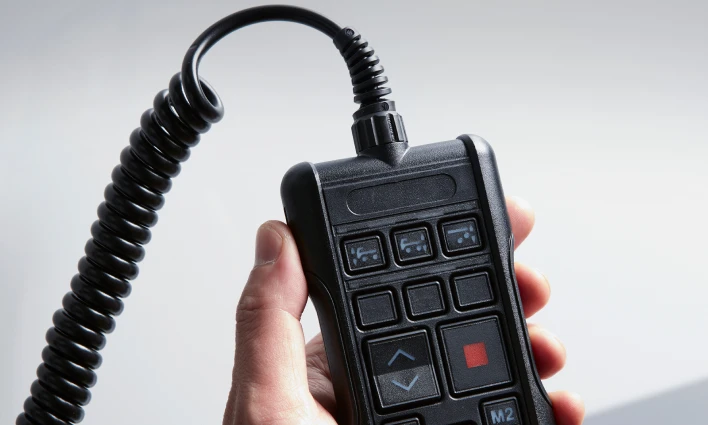

Front & Rear Air Suspension

The air-cushioned suspension maintains vehicle stability for improved ride comfort and allows the cargo bed height to be adjusted for easier loading and unloading.

Rear Axle Steering

Drop the tag axle to maximize your load carrying capacity or raise it for greater efficiency when transporting smaller loads. It also offers a short turning radius. (6x2)

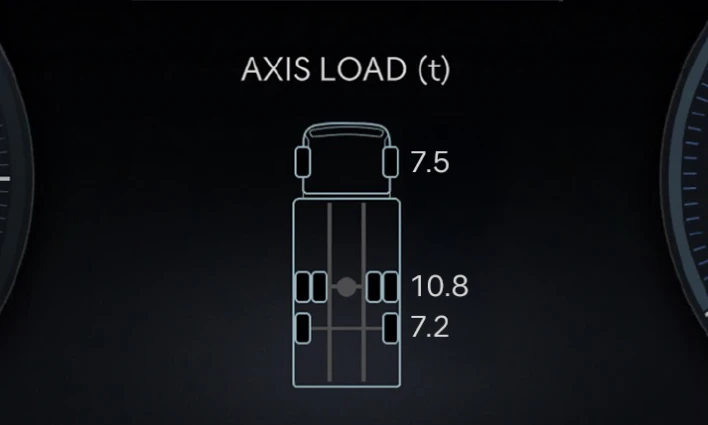

Weight Distribution Graphic Display

This handy feature lets you keep an eye on the cargo weight distribution over your front and rear axles for safer transport.

Selectable Line-up

Flexbility added

With a choice of the 4x2 or 6x2, you can choose the model that best fits your business.

Lighter Weight

Extra operating capacity

The lighter cabin weight realizes increased cargo capacity and better driving efficiency.

Load More

For driver’s needs

Reductions in the cabin weight and new features that protect against overloading help facilitate maximum carrying capacity.

Hydrogen safety

Assured through testing

The hydrogen storage and delivery system is safe thanks to rigorous testing for open flame, ballistic penetration, and exposure to temperature extremes.

Safety

Tested and Proven

Hyundai XCIENT Fuel Cell Truck keeps a distance from the vehicle in front with SCC Hyundai XCIENT Fuel Cell Truck keeps a distance from the vehicle in front with SCC

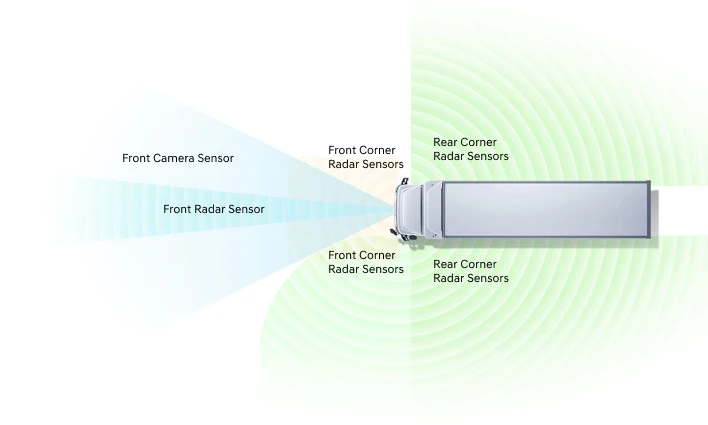

Vehicle Dynamic Control (VDC)
Forward Collision-Avoidance Assist (FCA)
Lane Departure Warning (LDW)

Satety Assistance on XCIENT

Vehicle Dynamic Control (VDC)

In slippery conditions, VDC provides optimal vehicle stability by detecting traction issues and managing torque at each wheel to help maintain directional control.

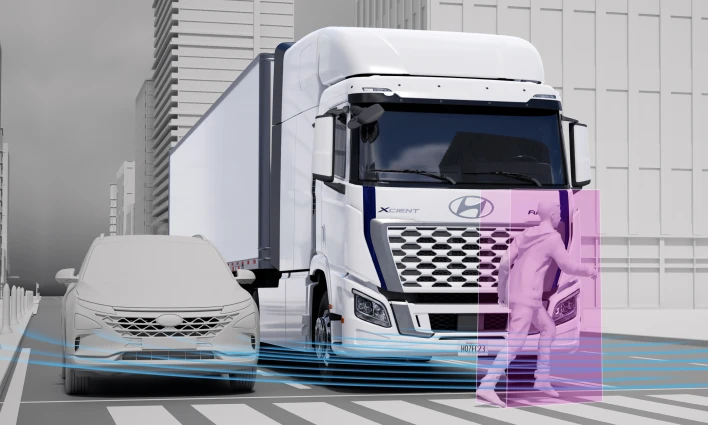

Forward Collision-Avoidance Assist (FCA)

FCA automatically applies the brakes whenever it detects the risk of a collision with a pedestrian, vehicle, or cyclist

Lane Departure Warning (LDW)

On detecting an unintentional lane departure, the system warns the driver by sending vibrations through the steering wheel.

Smart Cruise Control (SCC)
Easy Hill Start System (EHS)
Improved Crash Safety

For Driver’s Safety

Smart Cruise Control (SCC)

SCC maintains the speed preset by the driver and ensures that you are always a safe distance away from the vehicle ahead.

Easy Hill Start System (EHS)

EHS prevents the vehicle from rolling back when starting on steep slopes, providing safe and easy driving.

Improved crash safety

When the unavoidable does happen, power is automatically cut off to the high voltage cables, and the hydrogen tank is shut off to minimize the risk of electric shock and secondary events.

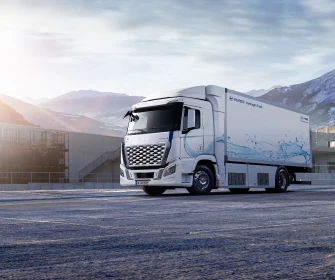

Truck Driver Checking Safety
Truck driver climbing a step bumper

Safety Comes First

XCIENT Fuel Cell makes no compromises in safety matters. Active and passive safety systems provide comprehensive, all-around protection.

Specifications

View the High-Tech Spec

Specs of Hyundai XCIENT Fuel Cell Truck(4X2) Specs of Hyundai XCIENT Fuel Cell Truck(4X2)

Key Specs

XCIENT Fuel Cell Truck
  • Cab type
    Electric driven hydraulic tilting
  • Configuration
    4X2
Dimension
  • Wheelbase
    Short 5,130 mm
    Medium 5,330 mm
    Long 5,530 mm
    Long Plus 5,730 mm
  • Overall length
    Short 9,780 mm
    Medium 9,780 mm
    Long 9,780 mm
    Long Plus 9,780 mm
  • Overall width
    2,540 mm
  • Overall height
    3,730mm (With Standard Spoiler) / 3,900mm (With Add-On Spoiler)
Weight
  • Max gross vehicle weight (Kg)
    19,500 Kg
  • Front 8,000 Kg / Rear 11,500 Kg
  • Max gross combination weight (Kg)
    38,000 Kg

Max. GVW includes the front and rear axle loads based on the permissible tire load.

Specs of Hyundai XCIENT Fuel Cell Truck(6X2) Specs of Hyundai XCIENT Fuel Cell Truck(6X2)

Key Specs

XCIENT Fuel Cell Truck
  • Cab type
    Electric driven hydraulic tilting
  • Configuration
    6X2
Dimension
  • Wheelbase
    Short 5,000+1,350 mm
    Medium 5,330+1,350 mm
    Long 5,530+1,350 mm
    Extra long 5,970+1,350 mm
  • Overall length
    Short 9,780 mm
    Medium 11,550 mm
    Long 11,725 mm
    Extra long 12,035 mm
  • Overall width
    2,540 mm
  • Overall height
    3,730mm (With Standard Spoiler) / 3,900mm (With Add-On Spoiler)
Weight
  • Max gross vehicle weight (Kg)
    27,000 Kg
  • Front 8,000 kg / Rear 19,000 kg
  • Max gross combination weight (Kg)
    42,000 Kg

Max. GVW includes the front and rear axle loads based on the permissible tire load.

Fuel cell specs of Hyundai XCIENT Fuel Cell Truck Fuel cell specs of Hyundai XCIENT Fuel Cell Truck
Motor
350kW
Hydrogen Tank
31kg H₂
(350 bar)
Battery
72kWh
(24 kWh x 3ea)
Fuel Cell System
180kW
(90 kW x 2ea)

Fuel Cell Specs

Powertrain
  • Fuel cell system
    180 kW (2 x 90 kW each)
  • Battery
    72 kWh (3 x 24 kWh each)
  • Motor
    350 kW (476 ps)
  • Transmission
    Automatic transmission
Hydrogen tanks
  • Filling pressure
    350 Bar
  • Capacity
    31 kg
Performance
  • All-electric range (AER)
    400 km with full load
